Getting started

BTP Solution Diagrams give you a quick and effective understanding of SAP Business Technology Platform end-to-end solution scenarios. To get started using the diagrams, you can use the following resources to familiarize yourself with the diagram guidelines and examples before installing the editor and importing the libraries.

Before you start using BTP Solution Diagrams​

  • Consult the SAP BTP Solution Diagram guideline. It is based on the new Horizon 2023 design principles and gives you the basic information you need to start using the templates to build your solution diagram.

Native integration for the SAP BTP service icons & shapes​

Important

We're happy to share starting with draw.io version 24.7.5 we got now the native integration for the SAP BTP service icons & shapes

To add the SAP BTP service icons & shapes directly without manual import into draw.io you need to follow these steps:

  1. Open draw.io (web or desktop)

  2. Press the More Shapes button: Add Shapes

  3. Choose the SAP entry Add SAP shapes

  4. Happy diagramming Start

Draw.io libraries for manual import​

And many more libraries for different usage in your *BTP Solution Diagram!

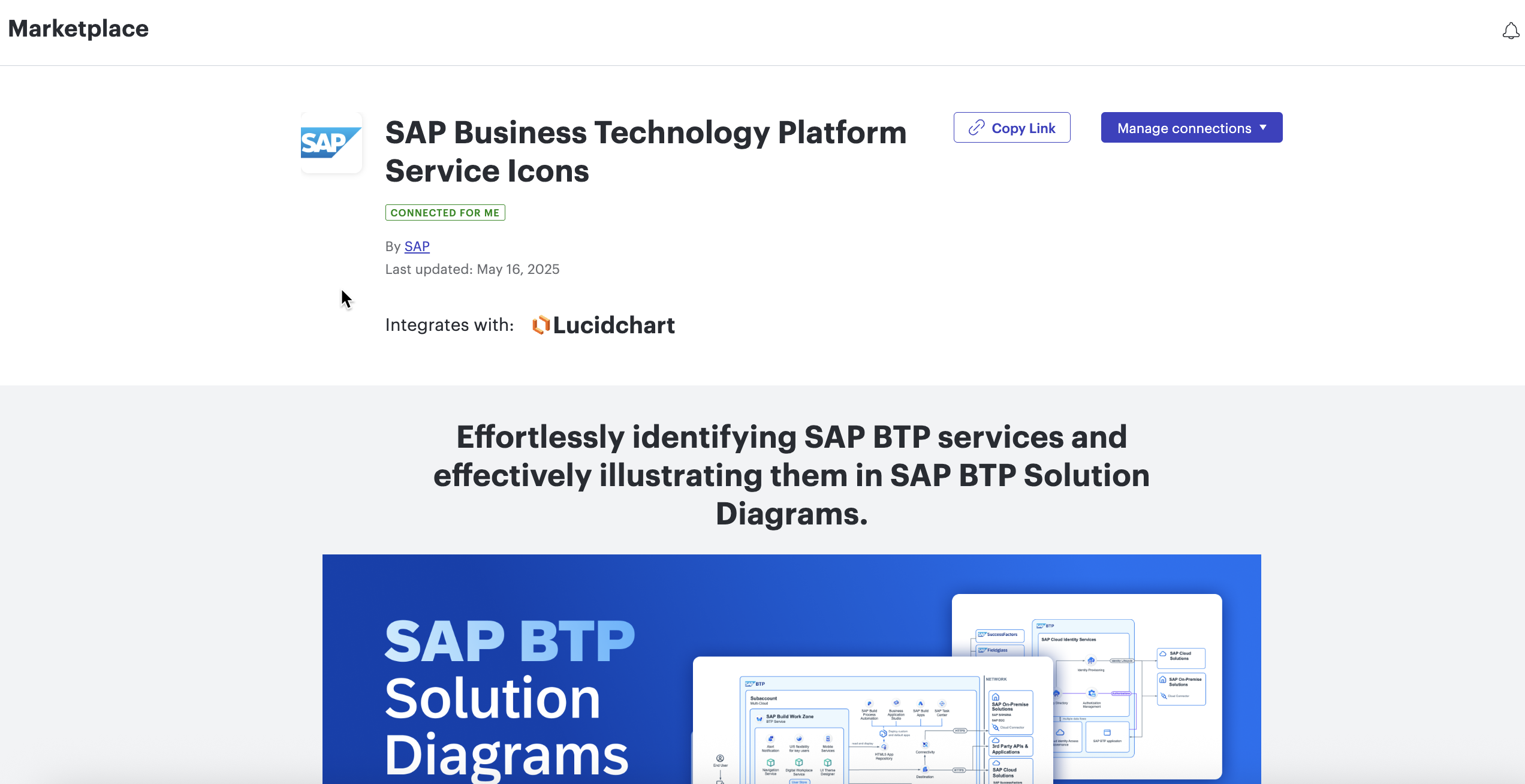

  • For the Lucidchart integration please check the offical documentation how to add the SAP Business Technology Platform Service Icons

  • Consult the Visual Design Guideline topic available in the content list panel to the left of this page to understand the different diagram elements available in the repository. You can also get it here: PDF

  • If you only use PowerPoint, then you can also use the provided shapes; check out the examples here: PPT

If you want to have a quick start we also provide a starter kit for draw.io here

Installing the draw.io diagram editor - the right tool for the right job​

  1. Install the drawing software draw.io on your local machine. You can get your local draw.io copy at GitHub repository.

Import libraries​

  1. Import the provided "xml" files to make use of the assets (draw.io custom shapes).

  2. Open a custom shape library.

    Lib Import

  3. Click File > Open Library from, then then select the folder where your file is stored.

  4. Select your custom library, then click Choose. You can now start working with the diagram.

    Lib Import

Configure draw.io with SAP Color Scheme​

Draw.io supports different options to customize the look & feel, for more details check also the documentation

To add the SAP colors schema for the SAP BTP Solution Diagrams you can edit the configuration choosing Extras > Configuration from the menu.

draw.io config

In the configuration screen you can copy & paste the following configuration and apply the changes afterwards:

{
  "customColorSchemes": [
    [
      {
        "fill": "#0070F2",
        "stroke": "none"
      },
      {
        "fill": "#EBF8FF",
        "stroke": "none"
      },
      {
        "fill": "#475E75",
        "stroke": "none"
      },
      {
        "fill": "#F5F6F7",
        "stroke": "none"
      },
      {
        "fill": "#1D2D3E",
        "stroke": "none"
      },
      {
        "fill": "#556B82",
        "stroke": "none"
      },
      {
        "fill": "#188918",
        "stroke": "none"
      },
      {
        "fill": "#F5FAE5",
        "stroke": "none"
      },
      {
        "fill": "#C35500",
        "stroke": "none"
      },
      {
        "fill": "#FFF8D6",
        "stroke": "none"
      },
      {
        "fill": "#D20A0A",
        "stroke": "none"
      },
      {
        "fill": "#FFEAF4",
        "stroke": "none"
      },
      {
        "fill": "#DAFDF5",
        "stroke": "none"
      },
      {
        "fill": "#5D36FF",
        "stroke": "none"
      },
      {
        "fill": "#F1ECFF",
        "stroke": "none"
      },
      {
        "fill": "#CC00DC",
        "stroke": "none"
      },
      {
        "fill": "#FFF0FA",
        "stroke": "none"
      }
    ]
  ],
  "presetColors": [
    "0070F2",
    "EBF8FF",
    "475E75",
    "F5F6F7",
    "1D2D3E",
    "556B82",
    "188918",
    "F5FAE5",
    "C35500",
    "FFF8D6",
    "D20A0A",
    "FFEAF4",
    "07838F",
    "DAFDF5",
    "5D36FF",
    "793802",
    "F1ECFF",
    "CC00DC",
    "FFF0FA"
  ]
}

After a restart of draw.io the adopted color schema should be visible:

draw.io custom fonts

Add custom fonts to draw.io​

You can also customize the usage of custom fonts which are installed on your device or you can make use of Google fonts. You can get more information in the official documentation.

To add the sytem fonts Arial and ArialBlack to your local draw.io installation you can add the following to the configuration:

{
"customFonts": [
    "Arial",
    "Arial Black"
  ]
  }

After a restart of draw.io you can now make use of the new fonts:

draw.io custom fonts

Add SAP colors, BTP Icons, Logos etc. to draw.io configuration at once​

In addition to the single steps to adjust the colors or fonts, you can also add the other assets like BTP Icons & Logos etc.

By using this "all-in-one" json: https://github.com/SAP/btp-solution-diagrams/blob/main/guideline/docs/examples/drawio-config-all-in-one.json you can copy and paste this in the configuration of draw.io desktop:

draw.io custom fonts

Finally after a restart of draw.io you have all SAP libraries preloaded:

draw.io custom fonts

Reusable diagram examples​

You don’t have to start creating each element from scratch. We provide ready to use examples and templates to use or adjust SAP BTP Solution Diagrams easily to your personal needs.

Lib Import

Contact or help required​

In case of questions please get in contact with us via GitHub discussions here
